Information:

Wylex are a market leader when it comes to circuit protection. They have been offering solutions on a domestic, commercial and industrial level since 1897.

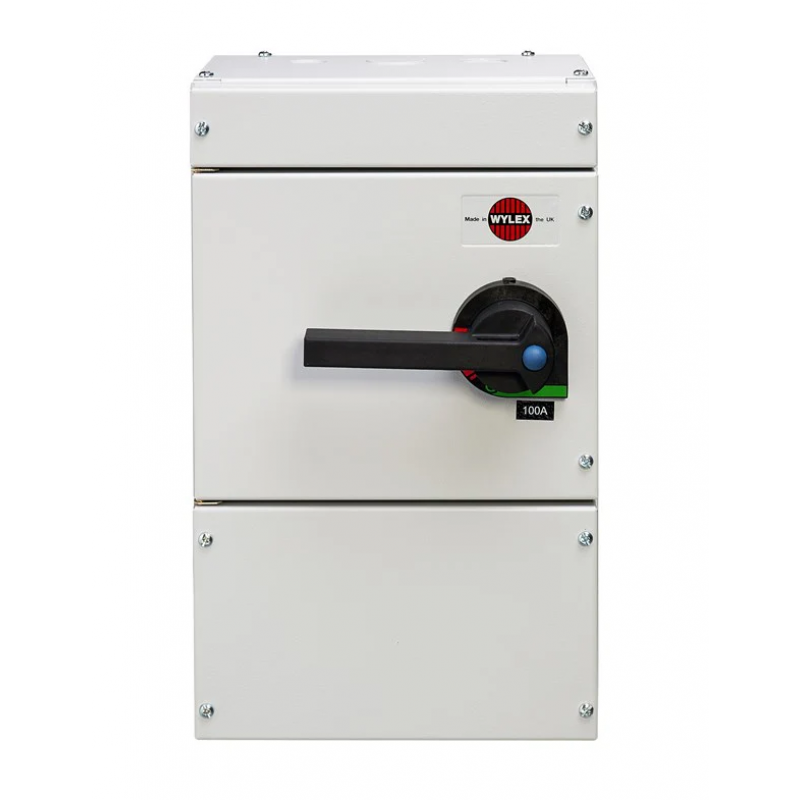

The Wylex NHTPSF100 is a 100A, TP&N NH Fuse Combination Unit. The unit has an IP4X rated robust steel enclosure, with a cable glanding plate supplied for the top and bottom. The door is removable and opens through 180° for ease of access, while a handle padlocking facility allows the switch and door to be locked in the off position.

Fuses are supplied.

Specification:

• Version as main switch Yes
• Version as safety switch No
• Max. rated operation voltage Ue AC 415 V
• Rated permanent current Iu 100 A
• Rated operation power at AC-23, 400 V 37 kW
• Conditioned rated short-circuit current Iq 20 kA
• Rated short-time withstand current lcw 1.5 kA
• Suitable for fuses Shape A4
• Number of poles 3
• With error protection No
• Type of electrical connection of main circuit Bolt connection
• Equipped with connectors Yes
• Suitable for floor mounting No
• Suitable for front mounting No
• Suitable for busbar mounting No
• Type of control element Door coupling rotary drive
• Position control element Front side
• Motor drive optional No
• Motor drive integrated No
• Version as emergency stop installation No
• Degree of protection (IP), front side IP40
• Product Standard/s BSEN60947-3, IEC60947-3, BSEN61439-3
• Terminal Capacity L&N 70 mm²
• Frequency 50 - 60 Hz
• CE Conformity Yes
• WEEE Symbol Yes
• UKCA Conformity Yes
