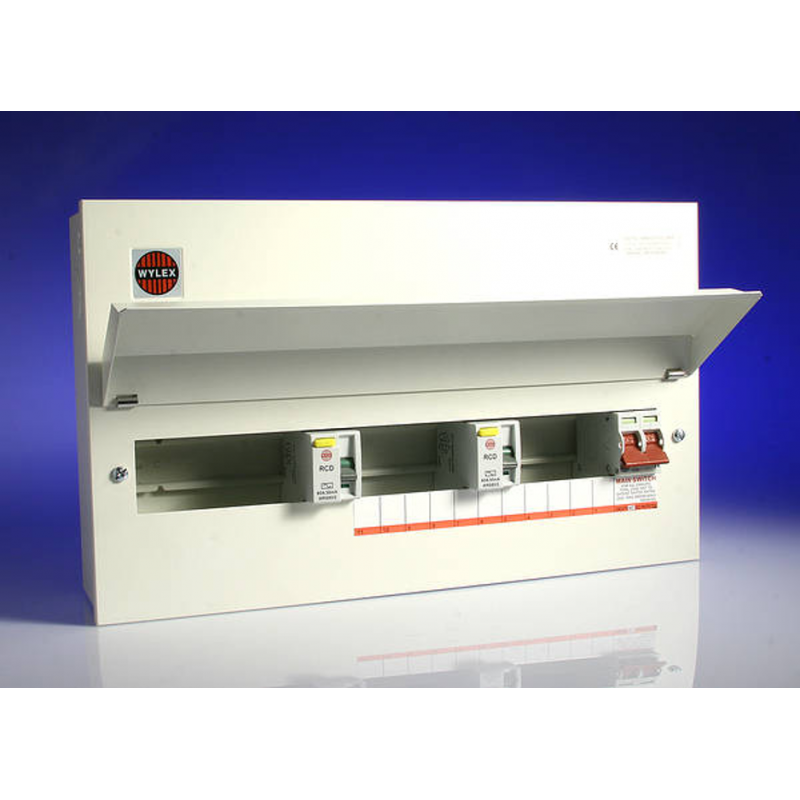

WYLEX 15W METAL CLAD CONSUMER UNIT
Model: NMRS15SSLMHI
WYLEX 15W METAL CLAD CONSUMER UNIT
Model: NMRS15SSLMHI
-
£110.96 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£92.47 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Uses a flexible configuration to provide the optimal
combinations of RCD protected circuits
and circuits with individual RCBO or MCB protection
Almost unlimited combinations
1 x 100 Amp DP Main switch controls the entire board and allows for up to 5 x
RCBO's or MCB's circuits
2 x 80 Amp 30mA RCD allowing form RCD circuits to be split around a building
Max No of MCB's or RCBO's = 15
Key Features
- All
metal enclosure, no external plastic parts
- Low
Smoke & Fume paint
- Compact
enclosure
- Available
in ‘no miss terminal’ fixed busbar versions and flexible versions
- Raised
& removable DIN rail / busbar assembly
- Cable
entry knockouts on 5 sides, top, bottom, left, right and rear
- RoHS
compliant in excess of UK standards
- UKAS
certified to BS EN 61439-3
- Optional
Non-combustible cover blanks
Mains tails cable entry grommet / gland for supplementary insulation similar to Class II level of protection to mains tails
Dimensions:
Height: 261mm (max)
Depth: 98mm
Depth with cover: 121mm
Width: 438mm
