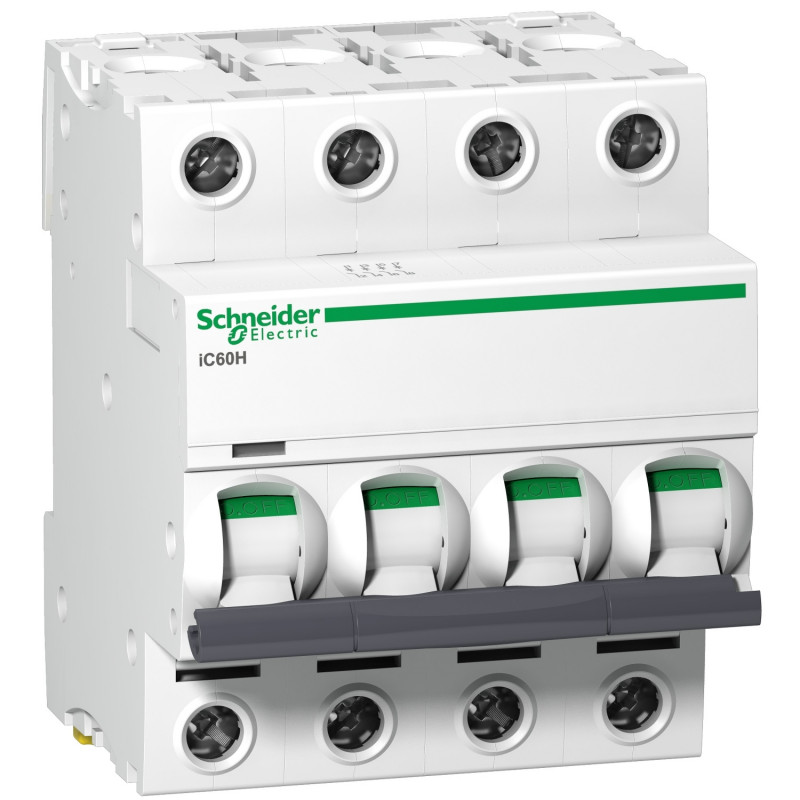

Schneider Electric Acti 9 40A MCB Mini Circuit Breaker, 4P Curve C
Model: A9F54440
Schneider Electric Acti 9 40A MCB Mini Circuit Breaker, 4P Curve C
Model: A9F54440
-
£63.60 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£53.00 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
Last 4 In Stock
Key Features
- Network
type AC/DC
- Thermal-magnetic
trip unit technology
- Curve
code C
- Suitable
for isolation conforming to IEC 60947-2
- Breaking
capacity:
- 10kA
Icu conforming to IEC 60947-2 - 440V AC 50/60Hz
- 15kA
Icu conforming to IEC 60947-2 - 400/415V AC 50/60Hz
- 25kA
Icu conforming to IEC 60947-2 - 125V DC 2 pole
- 30kA
Icu conforming to IEC 60947-2 - 230V AC 50/60Hz
- 40kA Icu conforming to IEC 60947-2 - 125V DC 3 pole
Specification
| Current Rating | 40A |
| Depth | 78.5mm |
| Dimensions | (H)85 mm x (W)72 mm x (D)78.5 mm |
| Height | 85mm |
| Mounting | Din Rail |
| Number of Modules | 4 |
| Number of Poles | Four Pole |
| Outgoing Terminal Capacity | 25mm² |
| Packaging Types | Each |
| Product Range | Acti9 |
| Short Circuit Rating | 10kA |
| Standards | BS EN 60898, BS EN 60947 |
| Tripping Characteristics | C Curve |
| Unspsc | 39121603 |
| Voltage Rating | 440V |
| Weight | 0.48kg |
| Width | 72mm |
