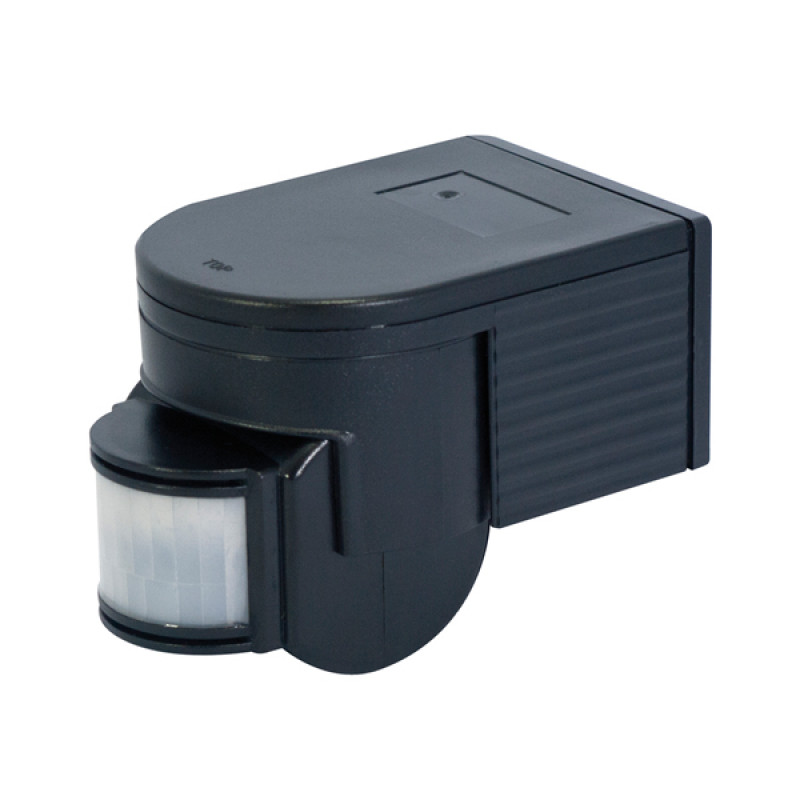

LGA PIR Sensor 1000w 180D
Model: PIR180-RB
LGA PIR Sensor 1000w 180D
Model: PIR180-RB
-
£10.68 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£8.90 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
- PIR (Passive Infra-Red Receiver). The PIR is activated when motion is detected within the PIR sensor area and adds extra security to your home, garage or shed
- Detection Range: 180°
- Detection Distance: 12
meters max (<24°)
- Ambient Light: 3 – 2000
LUX (adjustable)
- Time Delay: Min. 10 sec ±
3 sec / Max. 7 min ± 2 min
- Detection Motion Speed:
0.6 – 1.5 m/s
- Rated Load: Max. 1200W
(Incandescent) – 300W (LED)
- No minimum load with LED
use
- No minimum or max unit
total, when linking these units. But please note, the max load is: 1200W
(incandescent) 300W (LED)
- Installation Height: 1.8
– 2.5 meters
- Colour: Black
- IP44 – Protected against
dust that may harm equipment and protected against water spray from all
directions
- Compliant with: EN
61058-1, EN 55015, EN 61547, EN 61000-3-2 & EN 61000-3-3
