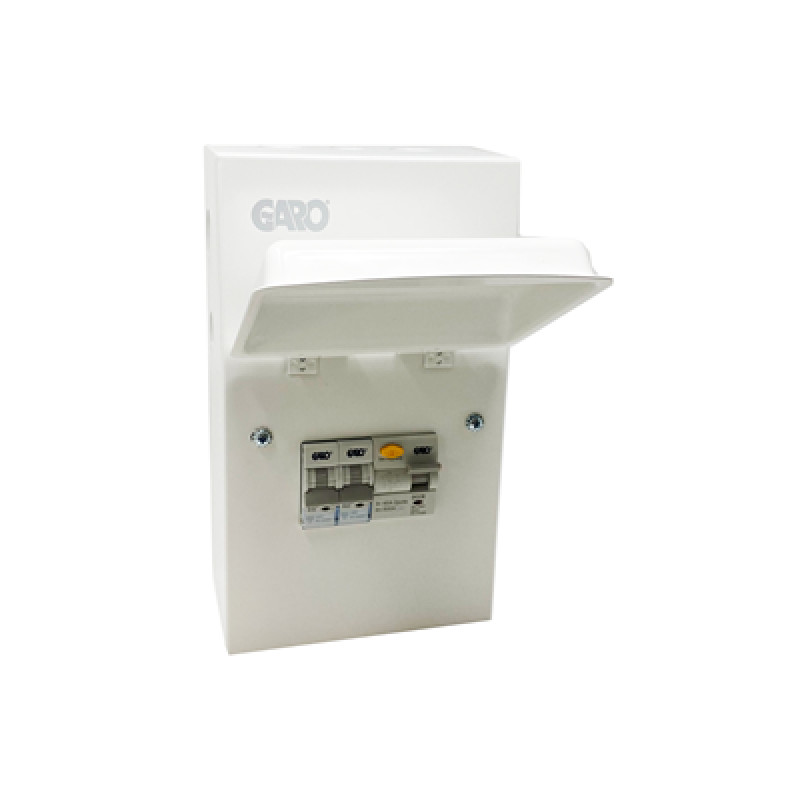

Garo G4R3216 Metal Clad Garage Consumer Unit 4 Way 40A RCCB & 16A & 32A MCB
Model: G4R3216
Garo G4R3216 Metal Clad Garage Consumer Unit 4 Way 40A RCCB & 16A & 32A MCB
Model: G4R3216
-
£35.99 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£29.99 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
Exclusive design for surface mounting. The housing is manufactured in metal and is also fitted with a door. Each unit is supplied with earth and neutral blocks, additional blocks can be fitted on request.
The enclosures are manufactured from steel. Applicable standard is EN61439-3 for a rated current 100A at 230 Volts.
All Garo consumer units are assembled in our manufacturing facility specialising in quick turnaround on bespoke orders.
Amendment 3 compliant.
Full CAD design service available.
Technical data
Rated current: 40A
Rated voltage: 230 V AC
Frequency: 50/60 Hz
Rated short-circuit capacity: 6 kA
Main Device: RCCB 40A 2P 30mA Type A
Additional Devices: MCB 6KA char. B 32A & 16A
Surge Protection: n/a
Degree of protection: IP40
Total number of ways: 4
Total Number of free ways: 0
Height..mm (H): 260
Width..mm (W): 150
Depth..mm (D): 116
Ambient temperature (C): -25…..+55
Storage temperature (C): -35…..+55
Terminals: 35mm
Maximum Backup Protection (A): 100
Standard: EN 61439-3
Compliance with: BS 7671
Rated current: 40A
Rated voltage: 230 V AC
Frequency: 50/60 Hz
Rated short-circuit capacity: 6 kA
Main Device: RCCB 40A 2P 30mA Type A
Additional Devices: MCB 6KA char. B 32A & 16A
Surge Protection: n/a
Degree of protection: IP40
Total number of ways: 4
Total Number of free ways: 0
Height..mm (H): 260
Width..mm (W): 150
Depth..mm (D): 116
Ambient temperature (C): -25…..+55
Storage temperature (C): -35…..+55
Terminals: 35mm
Maximum Backup Protection (A): 100
Standard: EN 61439-3
Compliance with: BS 7671
Dimensions
4 Way – W 15 x H 260 x D 116mm
