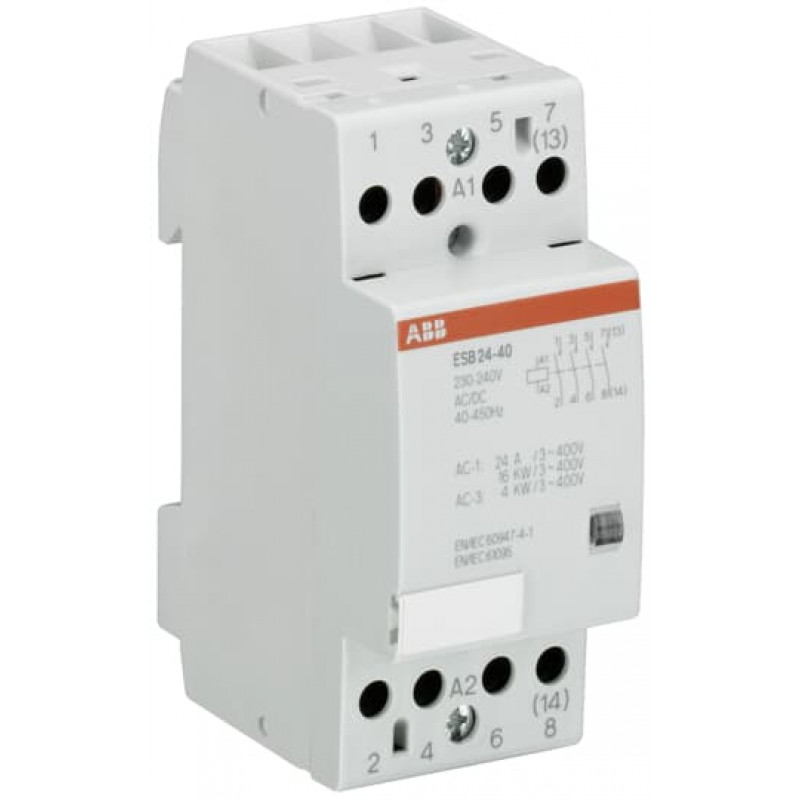

ABB GHE3291102R0006 INSTL CONTACTOR 24A
Model: ESB24-40-230V
ABB GHE3291102R0006 INSTL CONTACTOR 24A
Model: ESB24-40-230V
-
£76.48 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£63.73 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
The ESB24 installation contactor is a 4 pole contactor suitable for modular switchboards. They are specially designed fitting to modular DIN rail products and for applications where customers want to use the panel design with high finger protection. Installation contactors are used in residential, commercial and industrial applications for the control of single or three-phase loads up to 24 A or switching of control signals. Further features are the noiseless and hum-free DC coil, the integrated overvoltage protection up to 5 kV and a switch position indication. Auxiliary contacts, distance pieces and sealing cover for protection against unauthorised changes are available as accessory.
Technical
- Rated Operational Voltage:
- Main Circuit 220 V DC
Main Circuit 400 V AC
- Rated Control Circuit Voltage (Uc):
- 230 ... 240 V
- Rated Frequency (f):
- Control Circuit DC
Control Circuit 50 Hz
Control Circuit 60 Hz
Control Circuit 400 Hz
Main Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
- Rated Operational Current AC-1 (Ie):
- (NC) 24 A
(NO) 24 A
- Rated Operational Current AC-3 (Ie):
- (230 V) Single Phase 9 A
(400 V) Three Phase 9 A
- Rated Operational Power AC-1 (Pe):
- (230 V) Single Phase 5.5 kW
(400 V) Single Phase 16 kW
- Rated Operational Power AC-3 (Pe):
- (230 V) Single Phase 1.3 kW
(400 V) Three Phase 4 kW
- Rated Operational Current AC-7a (Ie):
- (NC) 24 A
(NO) 24 A
- Rated Operational Power AC-7a (Pe):
- (230 V) Single Phase 5.5 kW
(400 V) Three Phase 16 kW
- Rated Operational Current AC-7b (Ie):
- (230 V) Single Phase 9 A
(400 V) Three Phase 9 A
- Rated Operational Power AC-7b (Pe):
- (230 V) Single Phase 1.3 kW
(400 V) Three Phase 4 kW
- Recommended Screw Driver:
- Control Circuit Pozidriv 1
Main Circuit Pozidriv 1
- Rated Impulse Withstand Voltage (Uimp):
- 6 kV
- Rated Insulation Voltage (Ui):
- acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 500 V
- Connecting Capacity Main Circuit:
- Flexible with Ferrule 1x 1.5 ... 10 mm²
Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²
Flexible 1x 1.5 ... 10 mm²
Rigid 1x 1.5 ... 10 mm²
Rigid 2x 4 mm²
- Connecting Capacity Control Circuit:
- Flexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Ferrule 2x 0.75 ... 1 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible 1x 1 ... 4.0 mm²
Flexible 2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Rigid 2x 2.5 mm²
- Tightening Torque:
- Control Circuit 0.9 N·m
Main Circuit 1 N·m
- Wire Stripping Length:
- Control Circuit 7 mm
Main Circuit 10 mm
- Degree of Protection:
- IP20
- Electrical Durability:
- AC-1 150000 cycle
AC-3 500000 cycle
AC-7a 150000 cycle
AC-7b 500000 cycle
- Mechanical Durability:
- 1000000 cycle
- Number of Poles:
- 4
- Number of Auxiliary Contacts NC:
- 0
- Number of Auxiliary Contacts NO:
- 0
- Number of Main Contacts NC:
- 0
- Number of Main Contacts NO:
- 4
- Width in Number of Modular Spacings:
- 2
- Pollution Degree:
- 3
- Standards:
- IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
IEC/EN 61095
UL 60947-1
UL 60947-4-1
