ABB 2CDS273001R0065 S203MB6 MCB TP 10KA
Model: S203MB6
ABB 2CDS273001R0065 S203MB6 MCB TP 10KA
Model: S203MB6
-
£33.60 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£28.00 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
ABB is a leader in power and automation technologies that enable utility and industry customers to improve their performance while lowering environmental impact. ABB aims to connect people through technology and are striving towards a more productive, sustainable future.

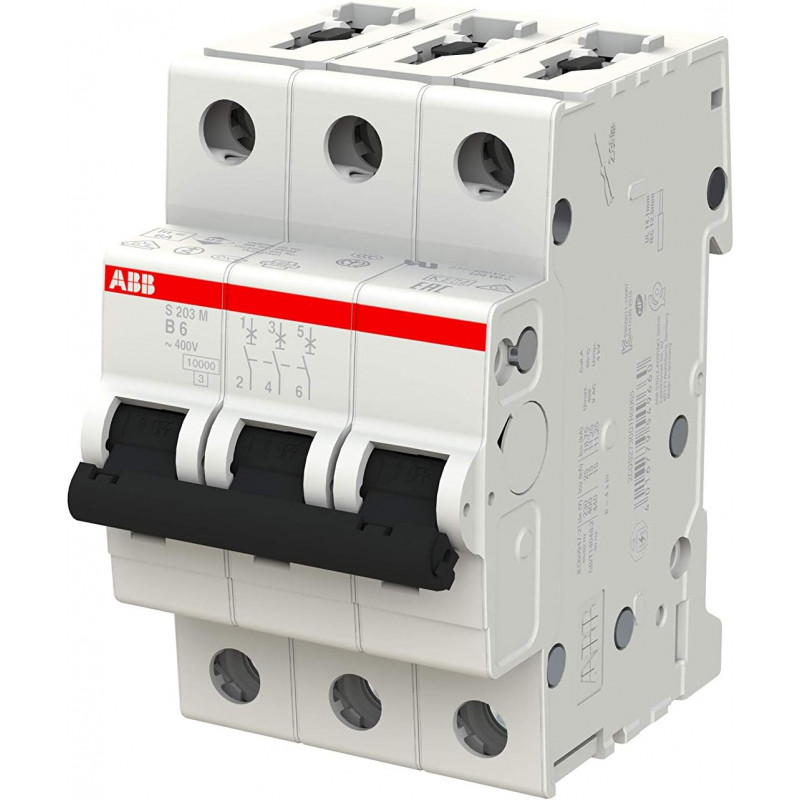

The ABB 2CDS273001R0065 S203MB6 is a triple pole, 6A MCB with 10kA breaking capacity and ‘B’ tripping characteristic. Suitable for residential, commercial and industrial applications, the MCB offers protection and control of circuits against overloads and short-circuits, as well as protection for people and large lengths of cables in TN and IT systems.
| Dimension | 6A 10kA |
| Circuit Breakers Description Product | MCB |
| Circuit Breakers Description Qualifier | Low Voltage |
| Circuit Breakers Features Pole Configuration | Triple Pole (3P) |
| Circuit Breakers Features Mounting | DIN Rail |
| Circuit Breakers Features Ingress Protection | IP20 |
| Circuit Breakers Features Trip Type | Type B |
| Circuit Breakers Features Short Circuit Rating | 10 kA |
| Circuit Breakers Dimensions Height | 88 mm |
| Circuit Breakers Dimensions Width | 52.5 mm |
| Circuit Breakers Dimensions Depth | 69 mm |
| Circuit Breakers Technical Data Current Rating | 6 A |
| Circuit Breakers Technical Data Voltage | 12 to 400/440VAC 12VDC V |
| Circuit Breakers General CE Approved | Y |
| Circuit Breakers General Standards | ROHS IEC/EN 60898/60947/60664 IEC 66008/60715 BS EN 60898/60947 UL/CSA |
| Circuit Breakers General Unit Weight | 0.37 kg |
| Circuit Breakers Dimensions Cable Capacity | 35 mm2 |
| Circuit Breakers Features Ingress Protection (EF005474) | IP20 |
| Circuit Breakers Dimensions Height (EF000040) | 88 mm |
| Circuit Breakers Dimensions Width (EF000008) | 52.5 mm |
| Circuit Breakers Dimensions Depth (EF000049) | 69 mm |
| Circuit Breakers Technical Data Current Rating (EF000227) | 6 A |
| Circuit Breakers Features Mounting (EF000003) | DIN Rail |
| Circuit Breakers Dimensions Height (EF008809) | 88 mm |
| Circuit Breakers Dimensions Width (EF008808) | 52.5 mm |
| Circuit Breakers Dimensions Depth (EF008810) | 69 mm |
| Manufacturer | ABB Limited |
| Brand | System ProM Compact |
