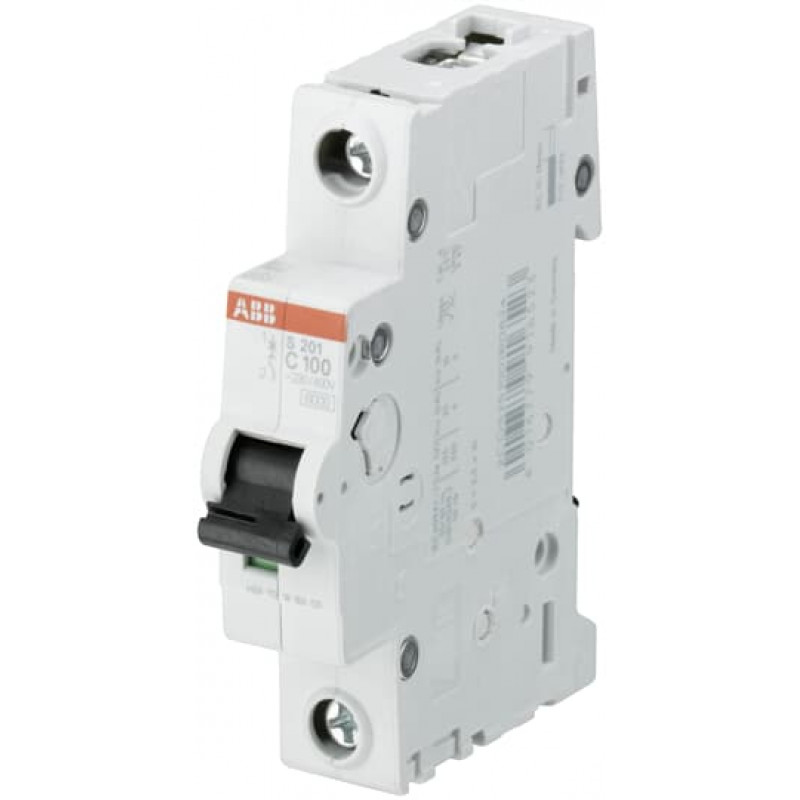

ABB System Pro M Compact 1P Poles, 100A Curve C MCB
Model: S201C100
ABB System Pro M Compact 1P Poles, 100A Curve C MCB
Model: S201C100
-
£22.07 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£18.39 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
About this item
The ABB System pro M compact S200 series miniature circuit breakers are current limiting.
They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection.- Degree of protection IP20
- High performance at an increased rated voltage for marine and industrial applications
- Unique, patented twin terminal with captive screws
- Degree of protection IP20
Technical
- Standards: IEC/EN 60898-1
- IEC/EN 60947-2
- Number of Poles: 1
- Tripping Characteristic: C
- Rated Current (I ): 100 A
- Rated Operational Voltage: acc. to IEC 60898-1 230 / 400
V AC
- acc. to IEC 60898-1 60 V DC
- Rated Insulation Voltage (U ): acc. toIEC/EN 60664-1 500
V
- Operational Voltage: Maximum (Incl. Tolerance) 253 / 440
V AC
- Minimum 12 V AC / 12 V DC
- Rated Frequency (f): 50 Hz
- 60 Hz
- Rated Short-Circuit Capacity (I ): 6 kA
- Rated Ultimate Short-Circuit Breaking Capacity (I ): 6 kA
- Rated Service Short-Circuit Breaking Capacity (I ): 6 kA
- Overvoltage Category: III
- Pollution Degree: 3
- Rated Impulse Withstand Voltage (U ):
- 4 kV
- (6.2 kV @ sea level)
- (5.0 kV @ 2000 m)
- Dielectric Test Voltage: 50 / 60 Hz, 1 min: 2 kV
- Housing Material: Insulation Group I, RAL 7035
- Actuator Type: Toggle
- Contact Position Indication: ON / OFF
- Degree of Protection: IP20
- Remarks: IP40 in enclosure with cover
- Electrical Endurance: 10000 AC cycle
- Mechanical Endurance: 20000 cycle
- Terminal Type: Screw Terminals
- Screw Terminal Type: Failsafe Bi-directional
Cylinder-lift Terminal
- Connecting Capacity: Busbar 16 / 16 mm²
- Tightening Torque: 3 N·m
- Recommended Screw Driver: Pozidriv 2
- Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail)
acc. to IEC 60715
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position: Any
