Designed for easy installation and connection of sub-mains or system extensions. The Fuse holder accommodates up to 100 Amp rated fuse 58mm long x 22mm diameter (not included).

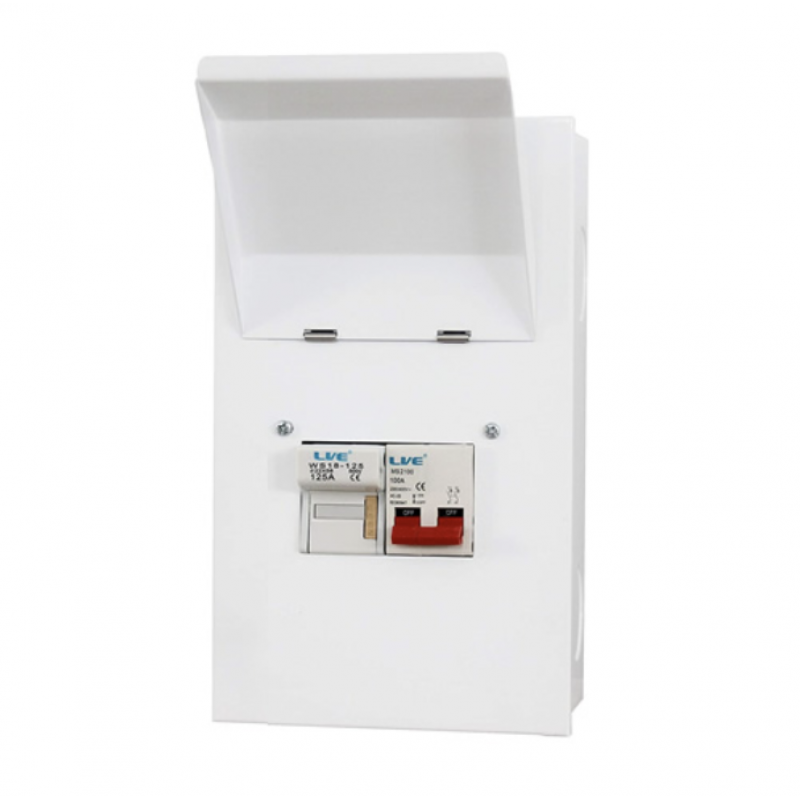

• Live Metal Clad Fused Isolator Switch MCFS100 SP&N 100 Amp Fuse Included
• Single Phase Free P&P
• Live Metal Fused Isolator Switch Box MCFS100 SP&N 100 Amp Single Phase
• Ideal for the protection and isolation of incoming supplies
• All of the metal construction is in accord with Amendment 3
• Single Phase and switched neutral
• 35mm² max cable capacity
• Manufactured to BS EN6143-3 complaint.
• Includes a 100 Amp Fuse (Various Brands)
• CE approved
• With drop down metal lid
• The Fuse holder has a lockout facility
• Maximum load: 100 Amp, 230V AC 50Hz
• 2 x 32mm knockouts on the top and bottom faces, 2 x 40mm knockouts on each side face
• Dimensions: 253mm x 125mm x 109mm
• The Fuse holder accommodates up to 100 Amp rated fuse 58mm long x 22mm diameter
