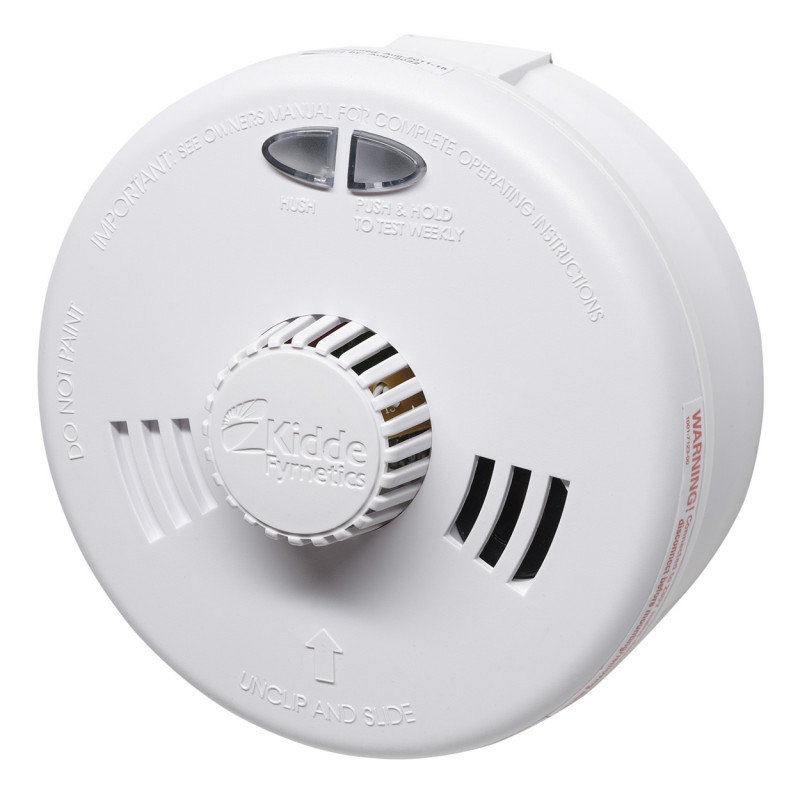

Kidde Interconnectable Rechargeable Heat Alarm 3SFWR
Model: 3SFWR
Kidde Interconnectable Rechargeable Heat Alarm 3SFWR
Model: 3SFWR
-
£41.99 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£34.99 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Mains-powered ionisation heat alarm from the ‘Slick’ range
of fast-fit alarms that can be interconnected with up to 23 other Kidde and
Firex mains alarms.
Optional wireless capability using Wireless Alarm Base
(RF-SFTP) for wire-free interconnection.
Ionisation alarms are for use in areas where there is danger
from fast-flaming fires.
The ‘Slick’ range requires installation by a professionally qualified electrician and complies with UK Building Regulations for new housing and associated standards (Grade D, BS5839, Part 6).Unique fast-fit system with separate base plate, for ease of fitting and maintenance.
Unique fast-fit system with separate base plate, for ease of fitting and maintenance
Integral, double-decker screwless terminal block for fast, push-fit connection
Auto reset after activation with latching LED allowing the initiating alarm to be identified
Separate Test and Hush buttons to test and temporarily silence nuisance alarms
Sealed-in rechargeable Lithium cell for 6 months continuous operation in event of mains failure
Interconnectable with other Kidde mains smoke and heat alarms and Kidde mains CO alarms using ‘Smart Interconnect’ technology
Tamper-resistant locking device – prevents unauthorised removal without the use of a tool
Wireless capability – use with optional Wireless Alarm Base (RF-SFTP) for RF interlink function
Deep Base – allows easier wiring
Tamper-proof batteries – sealed-in to prevent removal
Model 3SFWR
Power Supply
230V mains powered with rechargeable sealed-in Lithium cell
Temperature
Range 0ºC to +40ºC
Humidity
Range Up to 93% Relative Humidity (RH) non-condensing
Storage and
Transport -20oC to +60oC and 5 – 95% relative humidity (RH) non-condensing
Alarm
Dimensions 135 x 135 x 60mm (including ‘Slick’ mounting base)
Alarm Weight
240g
Warranty 10
years (including battery
Approvals
BSI certified to BS5446 Part 2:2003
CE tested
and certified
Associated
Standard BS 5839 Part 6 Grade D
Sensor
Thermistor (Thermal resistor) within detection unit
Sensitivity
Complies with BS 5446 Part2:2003, as a Class A2 device, alarms between 54ºC and
70ºC
Button Test
Simulates the effect of heat at the sensor, checks electronics and sounder
Automatic
Self-test Circuitry is tested every 40 seconds and unit beeps if fault is
detected
Supply
Voltage 230V AC, 50 Hz (nominal UK voltage)
Power
Consumption Maximum 80mA
Battery
Back-up Non user-replaceable Lithium Polymer Cell
Battery
Monitoring Battery is monitored and unit emits a single chirp every 40 seconds
if a fault is present
Low Battery
Warning 30-day low battery indicator
Power-on
Indicator Continuous green LED
Alarm
Sounder Electronic piezo-electric sounder (T3 pattern sound - three pulses -
space - three pulses)
Sound Output
85dB (A) minimum at 3 metres
Alarm
Frequency 3.2 kHz typical
Alarm Status
Red LED flashes rapidly, typically once every 2/3 seconds = unit sensing a fire
event
Red LED
double flashes every 30 seconds = unit is triggering unit (press test button to
unlatch)
Red LED
flashes once every ten seconds = in hush condition (auto-reset after 7 minutes)
Red LED
flashes once every 35 seconds = normal quiescent operation
Interconnection
Up to 24 units (smoke, heat and CO) can be hardwire interconnected using SMART®
interconnect system with optional control (see below)
Up to 15
units can be wireless interconnected using appropriate Wireless Base RF-SFTP
Optional
Controls Wireless Base Remote Test and Hush Unit (KN-RTH-RF) when used with
Wireless Base
Fixing
‘Slick’ mounting deep base as supplied
Base Cable Connect.
Screw less Terminal Block with slot release feature for conductor
