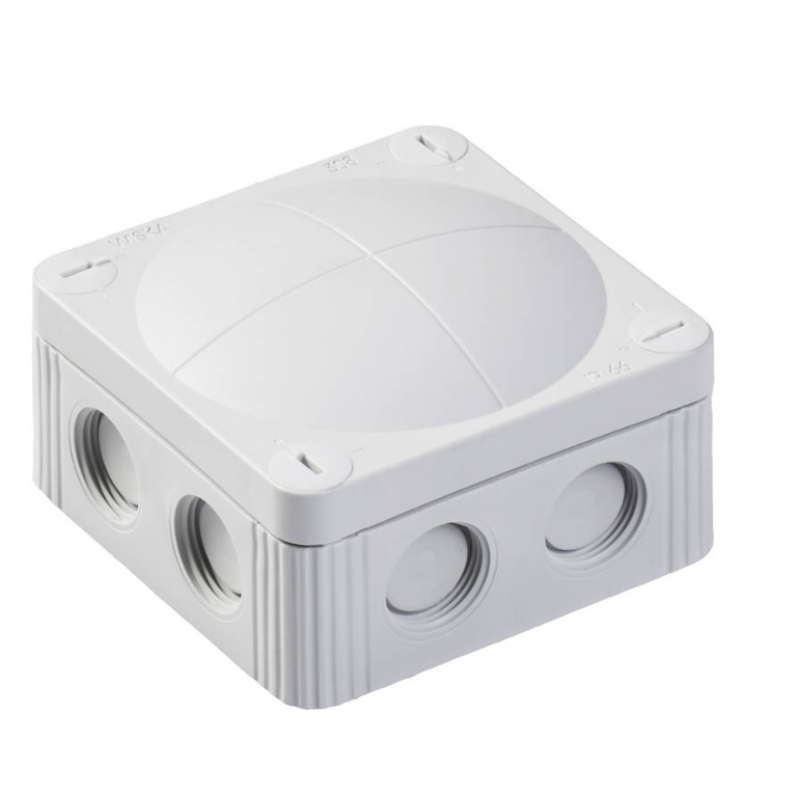

WISKA COMBI 85X85 IP66 GREY JUNCTION BOX
Model: 10060401
WISKA COMBI 85X85 IP66 GREY JUNCTION BOX
Model: 10060401
-
£5.03 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£4.19 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
WISKA COMBI 85X85 IP66 GREY JUNCTION BOX
Fixing: With mounting clip or 4 internal openings outside of the sealing area
Equipment: 8 elastic self-sealing puncture-membranes for cable entry
8 integrated M20 thread for mounting without lock nut
4 captive cover screws
including mounting clip
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated cross section | 4 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |

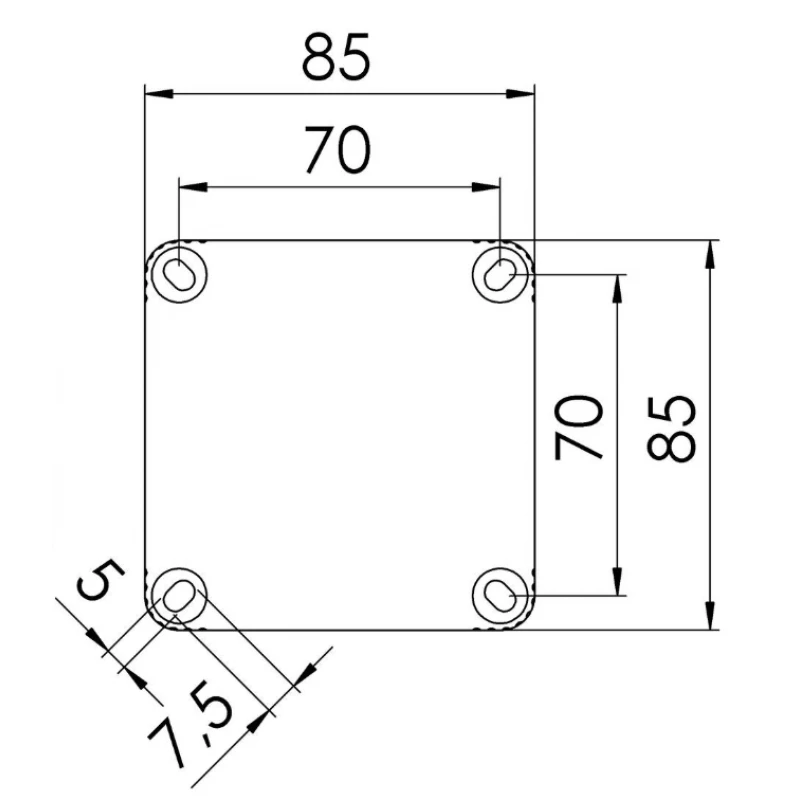

| External dimensions LxWxH | 85 x 85 x 51mm |

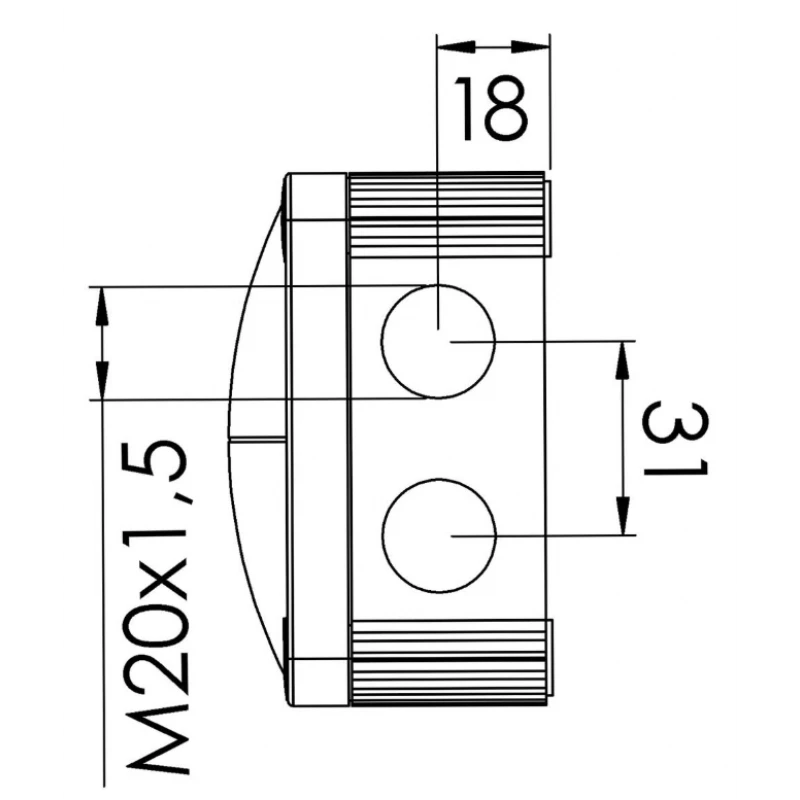

| Type of cable gland | M 20 x 1,5 |
| Using for cable gland |  |
| Product Color | RAL 9005 |
| WISKA-Order no. | 10060581 |
| Type | COMBI® 308 BK |
| Packing unit | 5 |
| ETIM-Classification | EC002600 |
